Trituradora de martillos vertical
Trituradora de martillos vertical
Product model: FTHC-V
Tipo: Trituradora de martillos
Material: Proporcionar servicios personalizados, una variedad de materiales para elegir.
Color: Servicio personalizado disponible
Marca: Fante
Vertical Metal Crusher Machine
Vertical Hammer Crusher is a high-efficiency crushing machine designed specifically for processing various types of scrap metal, including aluminium, iron, copper, and other metal waste. This machine combines cutting, striking, grinding, and crushing in one integrated unit, enabling it to reduce bulky materials into uniform particles in a short time.
Descripción del producto
Heavy-Duty Structure: Built with a vertical rotor system and wear-resistant hammer heads, ensuring stable performance and long service life. The machine utilises a vertical shaft and hammer impact principle to perform continuous multi-stage crushing for higher efficiency.
Hammer heads used in the Vertical Hammer Crusher are designed for reversible use, effectively doubling their service life and minimising downtime caused by wear. Made from high-strength, wear-resistant alloy steel, these hammer heads deliver consistent performance even under heavy-duty crushing conditions.
Los operadores pueden ajustar el tamaño de descarga del material triturado para satisfacer diversos requisitos de procesamiento o reciclaje posteriores.
Vertical Metal Crusher Machine Application
Parámetros del producto
| Modelo | FTHC-V-1500 | FTHC-V-3500 | FTHC-V-6000 |
| Dimensiones (mm) | 3300*380035000 | 5300*4650*6450 | 5500*4750*6600 |
| Rotating Speed(rpm) | 680 | 540 | 500 |
| Chambe Diameter (mm) | 1140 | 1560 | 1680 |
| Chamber Height (mm) | 1680 | 1785 | 1890 |
| Number of Brakers (pcs) | 2 | 2 | 2 |
| Number of Rings (pcs) | 36 | 64 | 64 |
| Number of Linners(pcs) | 12+12 | 12+12 | 12+12 |
| Main Power(kw) | 110 | 132+132 | 220+220 |
| Hydraulic Power(kw) | 1.5 | 2.25 | 2.25 |
| Peso (kg) | About 14500 | about 30,000 | About 45,000 |

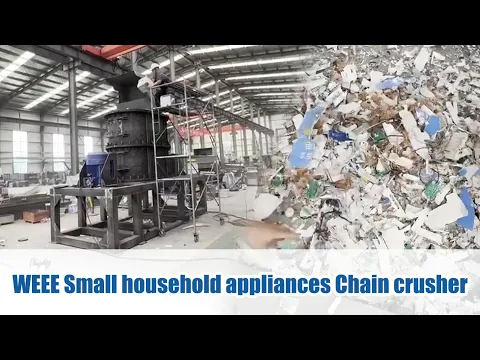

Imágenes reales del producto
Frequently Asked Questions
- What is the function of the crushing hammer in a hammer mill crusher?
The crushing hammer is the key working part of a hammer mill crusher. It rotates at high speed to impact and crush materials, helping achieve efficient size reduction.
- How often should crushing hammers be replaced?
The crushing hammer should be inspected regularly and replaced when worn. Proper maintenance helps maintain the performance of the hammer mill crusher and ensures stable crushing efficiency.
- What maintenance is required for a vertical crusher machine?
Regular maintenance includes checking the crushing hammer and lubricating moving parts to ensure stable operation of the vertical crusher machine.
